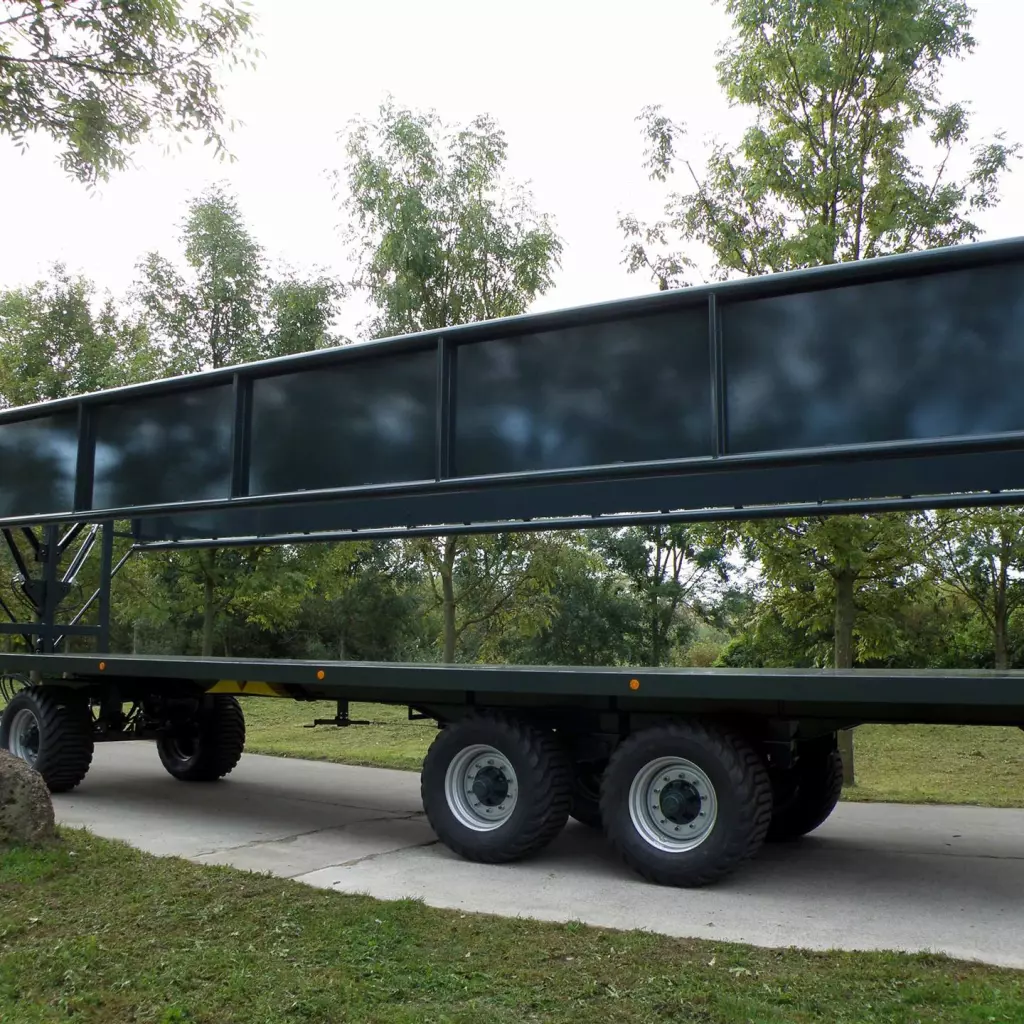

Conow bale transport wagon BTW 24 V9 – 24 t bale wagon with hydraulic locking mechanism
Description
Conow bale transport wagon BTW 24 V9 – 24 t bale wagon with hydraulic locking mechanism
Technical description - Conow BTW 24 V9 bale transport trolley
The Conow BTW 24 V9 bale transport trailer is a powerful, robust and high-capacity bale trailer high-capacity bale trailer for professional use in agriculture. agriculture. With an impressive gross vehicle weight rating of 24,000 kg and a hydraulic locking system, the trailer ensures the safe and efficient transport transporting large quantities of bales - even under demanding conditions.
Technical data
- Permissible total weight: 24,000 kg
- Approval: 25 km/h or 60 km/h (incl. DEKRA approval)
- Total vehicle length: approx. 12,000 mm
- Number of axles: 3
- Suspension: Parabolic suspension, 100 mm, 2-ply
- Track width: 2000 mm
- Drawbar: 2300 mm
- Brake system: 2-wire air brake with ALB
- Electrical system: 12 V, 7-pin, rear socket
Tyres
- Standard: 385/65 R 22.5 RE road profile, 11.75x22.5, 10-L, ET0
- Options:
- 455/40 R 22.5 HT+
- 500/50-22.5 BKT 648
- 550/45-22.5 Alliance 328
- 550/45-22.5 BKT 648
Performance & capacity data
- Tractor power requirement: min. 120 hp
- Own weight: approx. 5800 kg
- Chassis: large welded construction made of voluminous profiles
- Loading area length outside/inside: 10,600 mm / 10,300 mm
- Loading area width: 2500 mm
- Total loading area: 25.75 m²
- Loading floor height (standard tyres): 1330 mm
Colouring
- Standard: Conow green / iron grey
- Optional: individual RAL colour
Special equipment features

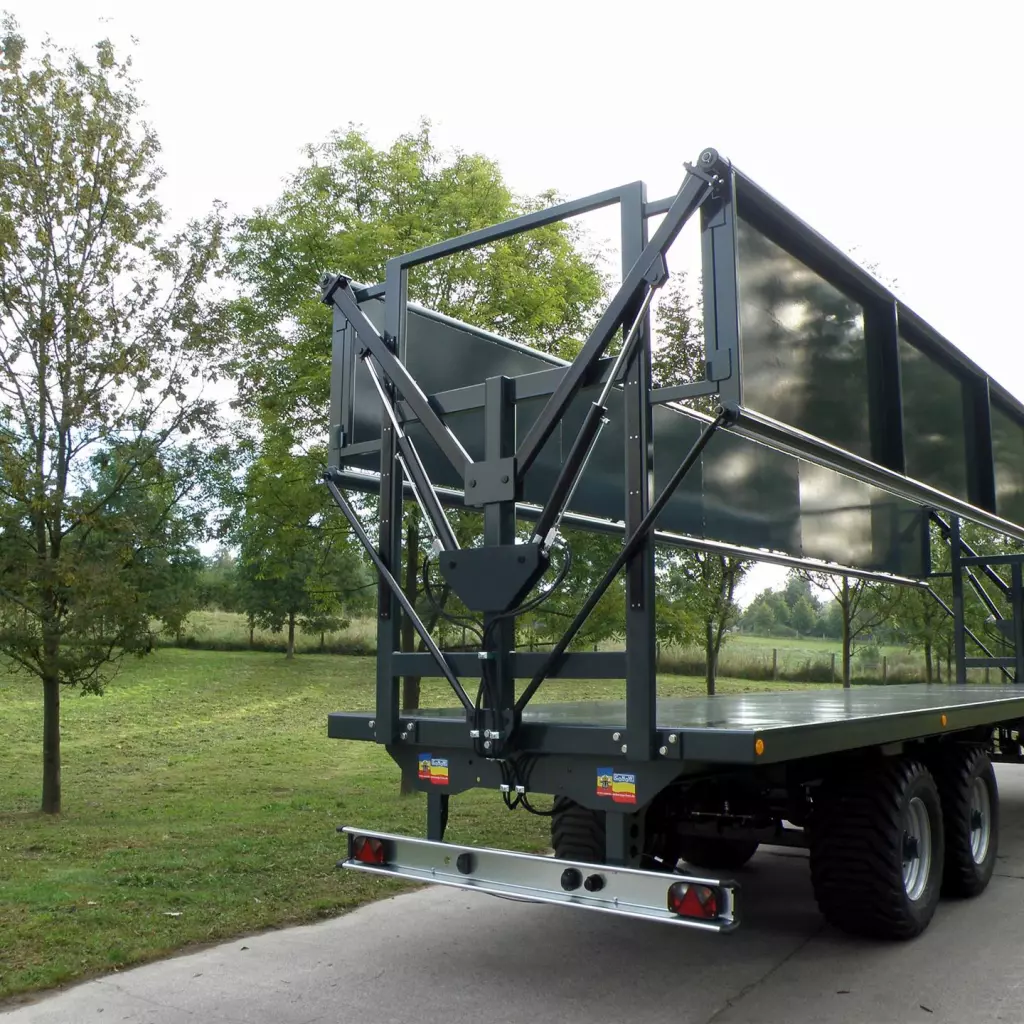

- Hydraulic locking mechanism for secure bale hold
- 3-axis system for optimum stability and running comfort
- Solid frame construction for high loads
- Flexible tyres for different operating conditions
- Large, continuous loading area for maximum transport capacity
Manufacturer
Conow Anhängerbau
Deutschlands größter Hersteller von HW 60 und HW 80 Anhängern und Aufbauten.
