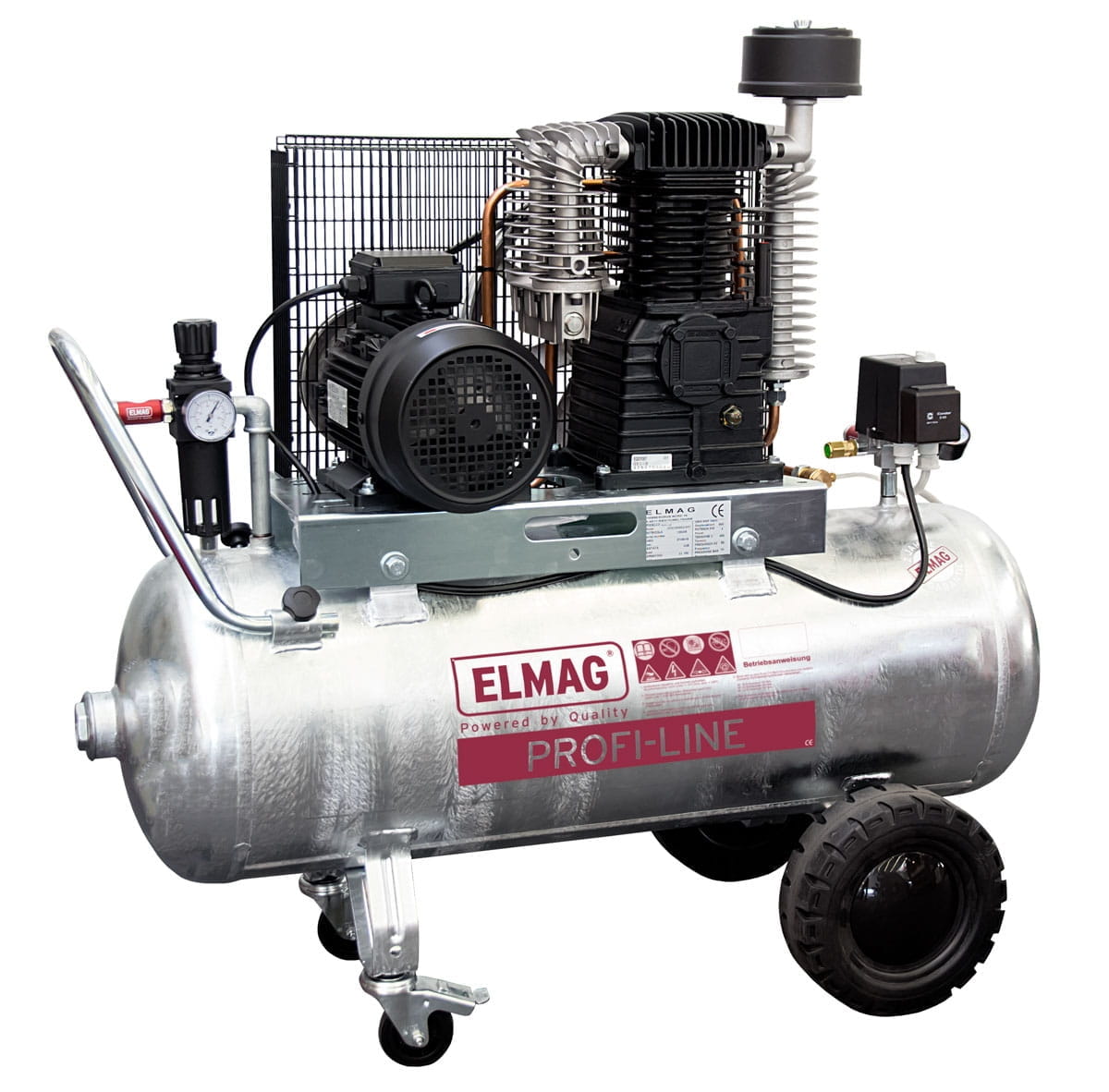

Compressor PROFI-LINE 'GALVANIZED' PL-Z 840/10/200 D
€2,915.00
Description
Compressor PROFI-LINE 'GALVANIZED' PL-Z 840/10/200 D
Three-phase 400 volt drive with motor protection relay
Indirect drive by means of V-belt
Compressor cylinder made of grey cast iron
High-performance precision piston
Two-cylinder unit
Intercooler and aftercooler made of die-cast aluminium with large, deep cooling fins
Additional cooling Copper pipe coil
Large cast fan wheel
CONDOR pressure switch for automatic on/off operation
Non-return valve, safety valve ...
Operating hours counter
Safety venting couplings
Solid rubber wheels with swivel castors & brake
Filter pressure regulator with coupling
15-year boiler guarantee
Effective delivery rate: 595l/min
Delivery quantity according to VDMA 4362, measured at 80 % of the maximum pressure: Yes
Suction capacity: 850l/min
Max. Operating pressure: 10bar
Oil lubricated: Yes
Container volume: 200 litres
Version: mobile
Rated motor power: 5.5 / 7.5kW / PS
Electrical connection voltage / frequency: 400/50V/Hz
Sound pressure level (4 m): 76dB(A)
Compressor speed: 1150 rpm
Air outlet: 1/2 inch
Length: 1550mm
Width: 650mm
Height: 1250mm
Weight: 160kg
Country of origin: IT
Parcel service capable: NO
