Compressor Battioni Paggani MEC1000PL

Skip image gallery
BL19957 Kompressor Battioni Paggani MEC1600PL

€764.06

Prices exclude VAT.

Free shipping

Product number: BL19944
Skip product gallery

Ersatzteile

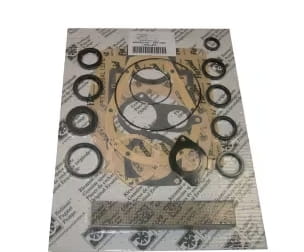

Battioni Pagani Reparatursatz MEC1000
Battioni Pagani Reparatursatz MEC1000
SW34597
Hersteller:

Available, delivery time: 1-3 days

€60.00
Vacuum pump lamellar Longlife 120x38mm - suitable for Battioni & Pagani MEC 1000
Vacuum pump lamellar Longlife 120x38mm - suitable for Battioni & Pagani MEC 1000
SW31884
Hersteller:

€10.20

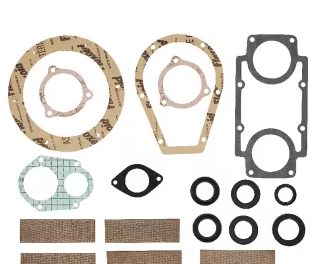

Battioni Pagani Reparatursatz MEC1000
Battioni Pagani Reparatursatz MEC1000
SW34598
Hersteller:

€253.20

Description

Compressor Battioni Paggani MEC1000PL

Special features
  • Each pump undergoes a final test at the factory, including vacuum, compression and lubrication tests
  • A test report relating to the serial number is created for each pump

Areas of application
These vacuum pumps with vanes are mainly used in the agricultural sector for filling and emptying slurry tanks

Properties
These pumps can generate both positive and negative pressure

Technical information
  • Composition of the article numbers: MEC = Series, 8000 = Type, P = Pulley drive
  • Pumps with an "L" in the article number must be driven anti-clockwise, pumps without an "L" in the article number must be driven clockwise
  • For pumps without automatic lubrication (no "A" in the article number), the pump is equipped with forced lubrication, which is adjusted using drip nozzles. Automatic lubrication available on request
  • On a pump with automatic lubrication, the lubricating oil quantity is set at the factory and cannot be changed without tools
  • With forced lubrication as with automatic lubrication, the function must be checked at all times during operation
  • The direction of rotation is determined when the axis to be driven is directed towards the viewer
  • Oil to be used to lubricate the discs: Original oil from B.P. (article number BP5070)

Advantages
As B.P. pumps are tested, checked and packaged with the utmost care, one hundred per cent trouble-free start-up is guaranteed

Drive type
Belt pulley

Direction of rotation
Counterclockwise rotation (CCW)

Ballast air injection system
No

Scope of delivery
  • These pumps are supplied with standard vanes. Long-life vanes available on request
  • Without pressure and vacuum relief valve
  • The pumps are supplied without lubricating oil (item BP5070)
  • Without pulley

Lubrication system type
Manual

Slat type
Standard

Collision protection system
No
