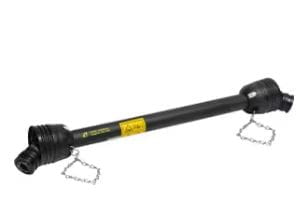

COMER T10L PTO shaft quick-release fork - 710mm - 1-3/8" 6 teeth - 1-3/8" 6 teeth

-

€156.32

Prices exclude VAT.

Free shipping

Available, delivery time: 1-3 days

Product number: BLCT100710ENC12C12

Brand	Comer
Areas of application	Hay rake Hay tedder Field sprayers
Technical information	Observe the Comer operating instructions Max. dynamic capacity 540 rpm - 12 kW - 210 Nm Max. dynamic capacity 1000 rpm - 18 kW - 172 Nm Values for diffraction angle 5° and service life 1000 hours
Outer diameter of connection, tractor side	1-3/8 inch
Connection, number of wedges/utility, tractor side	6
Locking type on tractor side	Pull fastener
Mounting on the tractor side	Quick-release fork
Connection outside diameter, machine side	1-3/8 inch
Connection, number of keys / grooves, machine side	6
Locking type on the appliance side	Pull fastener
Mounting on the device side	Quick release fork
Size	T10
LLength	710 mm
Power at 540 rpm	12 kW
Power at 1000 rpm	18 kW
Universal joint, cap diameter, tractor side	22 mm
Universal joint length, tractor side	54 mm
Universal joint, cap diameter, machine side	22 mm
Universal joint length, machine side	54 mm
Outer tube wall thickness	2.6 mm
Outer diameter outer tube large	32.5 mm
Wall thickness inner tube	3.5 mm
Outer diameter inner tube large	26.5 mm
Mould profile tube	Triangular
Max. dynamic torque	320 N-m
