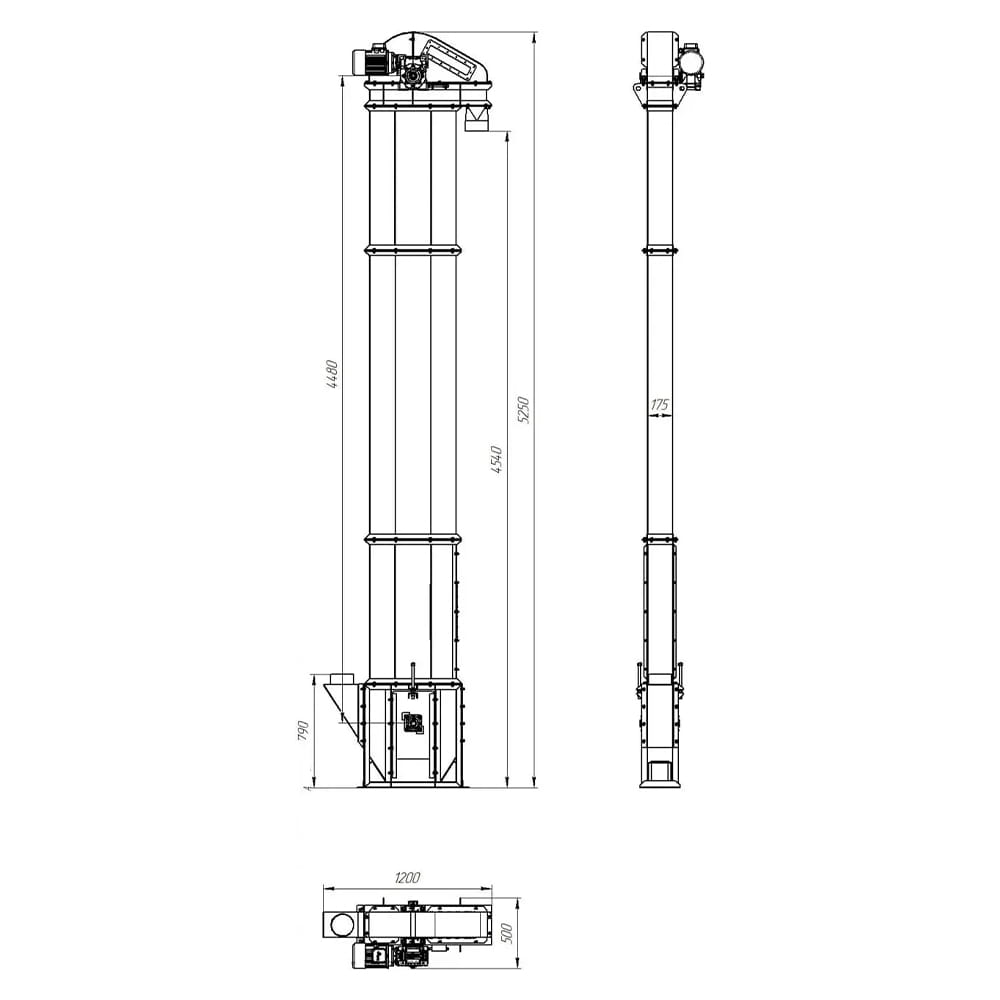

Bucket elevator 4.5 m with flexible screw conveyor 6 m · Vertical & horizontal conveyor · up to 10 t/h
€6,750.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Bucket elevator 4.5 m with flexible screw conveyor 6 m · Vertical & horizontal conveyor · up to 10 t/h
Bucket elevator 4.5 m with flexible screw conveyor 6 m - Efficient vertical and horizontal conveying system
This high-performance conveyor set consisting of a bucket elevator (4.5 m discharge height) and flexible screw conveyor (6 m) offers a compact, energy-efficient solution for transporting grain, granulate, meal and pellets. Ideal for automatic production lines, it combines vertical and horizontal material transport in one system.
Areas of application
- Cleaning and drying systems
- Grain separators and sorting lines
- Feed and granulation plants
- Mills, grits plants and animal feed companies
- Grain reception centres and rural warehouses
- Filling systems for silos and large warehouses
Advantages of the conveyor system
- Vertical and horizontal transport in one complete solution
- Conveying capacity up to 10 t/h with low energy consumption
- Robust construction with minimal maintenance requirements
- Flexible auger enables easy installation and length adjustment
- Optimum integration into industrial and agricultural conveyor lines
Technical data - Bucket elevator
| Performance | up to 10 t/h (for wheat) |
| Engine power | 1.5 kW (220-230 V or 380-400 V) |
| Speed of the drive drum | 124 rpm |
| Belt speed | 2 m/s |
| Cup spacing | 204 mm |
| Cup size | 125 × 110 mm |
| Cup volume | 0,68 l |
| Number of cups | 48 pieces |
| Drive drum diameter | 294 mm |
| Belt dimensions | 150 × 4 mm (width × thickness) |
| Head dimensions | 963 × 427 × 685 mm |
| Basic dimensions (without funnel) | 780 × 256 × 720 mm |
| Discharge height | 4,54 m |
| Cup material | HD polyethylene (optional stainless steel) |
Technical data - Flexible screw conveyor
| Screw diameter | Ø 127 mm |
| Length | 6 m (special lengths available) |
| Engine power | 2.2 kW (380-400 V) |
Key functions
- 48 cups for even transport
- Sturdy drive drum with 294 mm diameter
- Belt speed 2 m/s for high transport efficiency
- Conveying capacity up to 10 t/h
This compact conveyor system is the ideal solution for agricultural and industrial operations that require a robust, low-maintenance and powerful combination of bucket elevator and screw conveyor.
