Bucket elevator 11.5 m · Vertical bucket elevator for grain & bulk materials · up to 10 t/h
€10,750.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Bucket elevator 11.5 m · Vertical bucket elevator for grain & bulk materials · up to 10 t/h
Bucket elevator 11.5 m - Powerful vertical bucket elevator for grain & bulk materials
The 11.5 metre high bucket elevator is a modern and reliable device for the vertical transport of grain and its processed products such as meal, grits and pellets. Thanks to its continuous operation and robust design, it offers maximum efficiency, safety and durability for industrial conveying processes.
Main areas of application
- Cleaning and drying systems in elevators
- Pelletising and granulation lines
- Mills, feed mills and grist mills
- Grain reception centres
- Silo and warehouse filling
Functionality
The elevator works with a flexible belt system to which buckets are evenly attached. These transport the material upwards safely and energy-efficiently. The design minimises operational disruptions and is designed for low-maintenance continuous operation.
Technical data
| Conveying capacity & drive | |
|---|---|
| Performance | up to 10 t/h (for wheat) |
| Engine power | 2.2 kW (220-230 V or 380-400 V) |
| Speed of the drive drum | 124 rpm |
| Belt speed | 2 m/s |
| Cup system | |
| Cup spacing | 204 mm |
| Cup dimensions | 125 × 110 mm |
| Cup volume | 0,68 l |
| Number of cups | 115 pieces |
| Cup material | HD polyethylene (optional stainless steel) |
| Belt & drum | |
| Belt dimensions | 150 × 4 mm (width × thickness) |
| Drive drum diameter | 294 mm |
| Dimensions | |

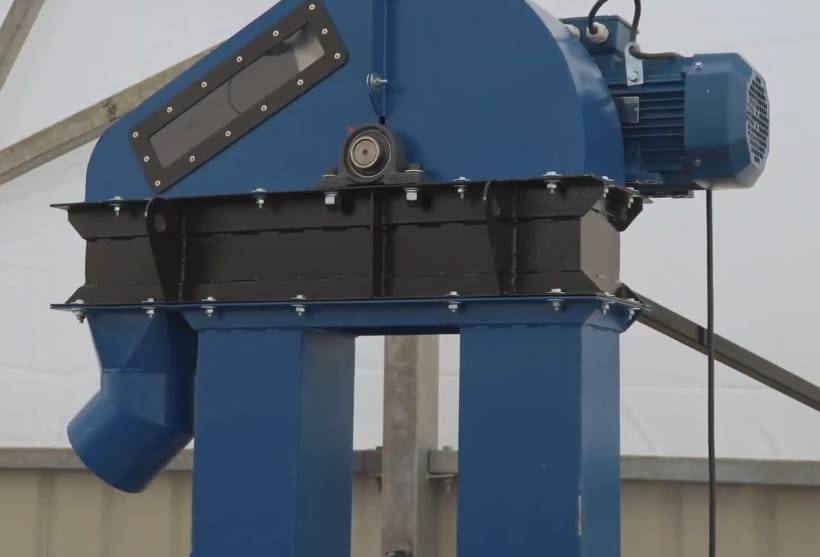

| Head size | 963 × 427 × 685 mm |

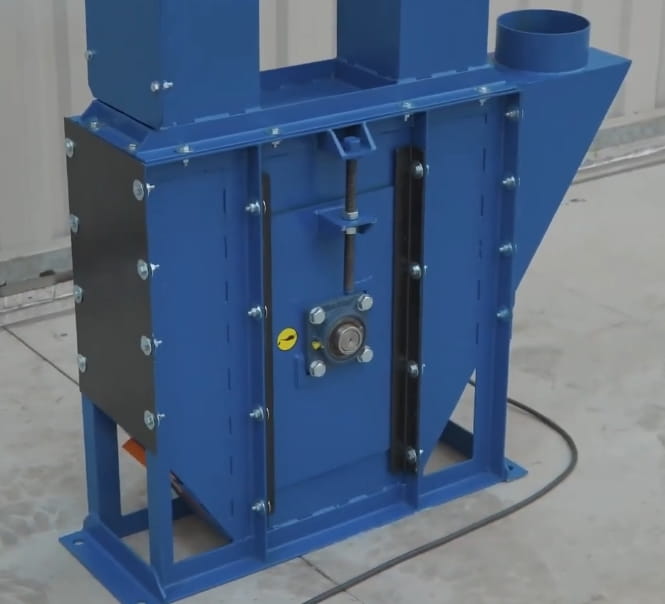

| Base without funnel | 780 × 256 × 720 mm |
| Total height | 11,5 m |
Product advantages
- High conveying capacity up to 10 t/h
- Trouble-free continuous operation
- Energy-efficient material transport
- Robust construction for industrial applications
- Minimised maintenance effort
- Suitable for grain, meal, groats and pellets
- Ideal for automated conveyor and processing lines
The 11.5 m bucket elevator guarantees reliable conveying, high efficiency and a long service life - perfect for professional agricultural and industrial operations.
