BT50 DUO Oil Press – Professional Cold Oil Press up to 12 l/h | 2.2 kW & Frequency Converter
€2,280.00
Available, delivery time: 1-2 weeks
Description
BT50 DUO Oil Press – Professional Cold Oil Press up to 12 l/h | 2.2 kW & Frequency Converter
BT50 DUO oil press - Professional cold oil press with up to 12 litres per hour

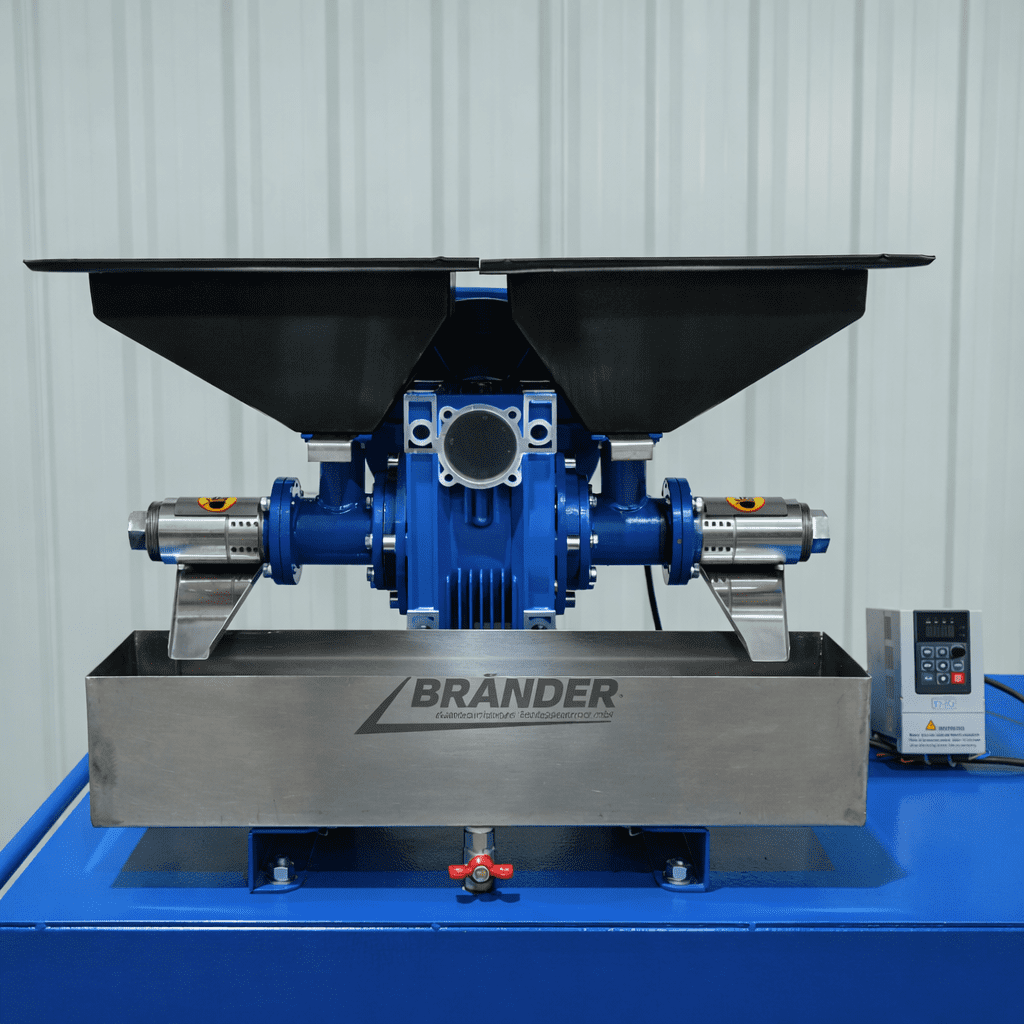

TheBT50 DUO oil press is a powerful and robust screw press for the professional production of cold-pressed vegetable oils. With an output of up to12 litres per hourWith its powerful 2.2 kW motor and integrated frequency converter, it offers maximum efficiency and optimum control during the pressing process.
Efficient oil production process
The BT50 DUO has been specially developed for cold pressing processes and enables the gentle processing of a wide variety of oilseeds. The oil production process takes place in several precise steps:
- Filling the seeds into the storage container
- Metered feed via an adjustable flap
- Shredding and compaction by massive screws
- Pressing in the chamber with high mechanical pressure

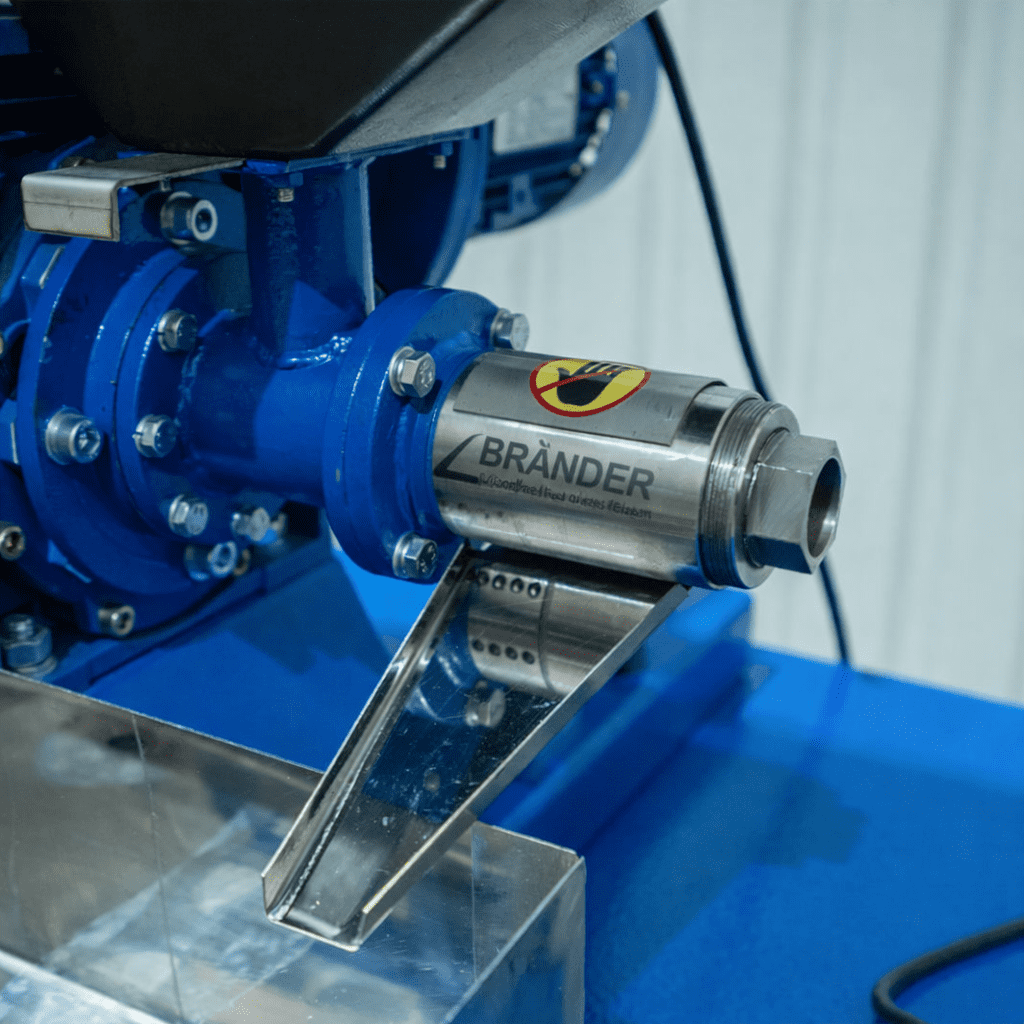

- Oil runs through openings in the press cylinder into the collection channel
- Press cake (pomace) is discharged via the end nut
Advantages of cold-pressed oils
- Preservation of flavour, vitamins and bioactive substances
- Rich in omega-3 and omega-6 fatty acids
- Natural, intense flavour without bitter substances
- Long shelf life without clouding or rancidity
- Pomace can be used as high-quality animal feed
Advantages of the BT50 DUO screw press
- Up to 12 litres per hour - Double the performance compared to standard presses
- Cold pressing for maximum nutrient content
- Suitable for many oilseeds: Rapeseed, sunflower, linseed, hemp, milk thistle, nuts and many more.
- Solid construction for maximum durability
- Ideal for farms & professional oil production

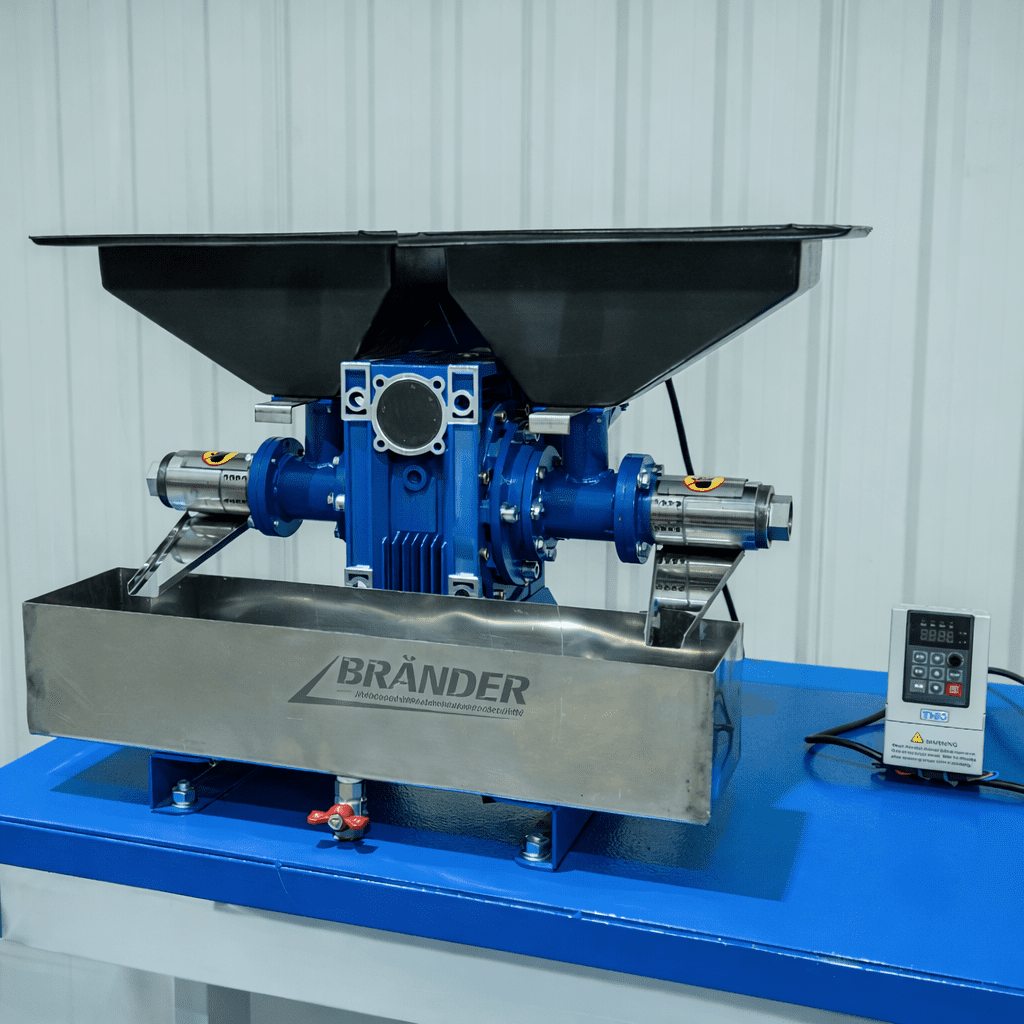

Frequency inverter - included
The press is equipped with a frequency inverter as standard, which offers numerous advantages:
Soft start
- Reduces the starting current by a factor of 6-8
- Protects electrics, motor and drive parts
- Prevents mechanical shock loads
Optimum speed control
- Adaptation of the speed to different oilseeds
- Higher oil yield with lower energy consumption
- Easy start-up with heavy materials
Protection & monitoring
- Automatic switch-off in the event of overload
- Compatible with control and safety systems
Economy & longevity
- Reduced power consumption
- Significantly less wear on the engine & transmission
Technical data
| Performance | up to 12 l/h |
|---|---|
| Engine power | 2.2 kW |
| Frequency inverter | inclusive |
| Power supply | 220-240 V |

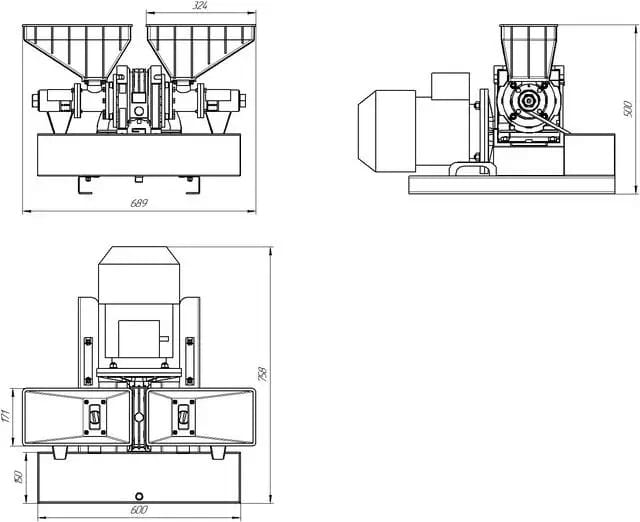

| Dimensions (L × W × H) | 758 × 689 × 500 mm |
| Weight | 75 kg |
| Suitable oilseeds | Sunflower, rapeseed, linseed, hemp, milk thistle, pumpkin, sesame, nuts and much more. |
Note on the selection of raw materials
The machine is suitable for sunflower seeds with shells as well as numerous other oil plants. Material testing may be required for certain seeds - we offer this service.free of charge in the showroom to.
Exemplary values of selected oilseeds
| Grain type | Oil content | Recommended humidity | kg per 1 litre of oil |
|---|---|---|---|
| Black cumin | 32-40% | 3-5% | 2.9-3.8 kg |
| Pumpkin | 35-48% | 5-7% | 2.38-3.5 kg |
| Hemp | 35-45% | 5-7% | 2.5-3.5 kg |
| Rapeseed | 38-47% | 6-8% | 2.45-3.15 kg |
| Sunflower | 40-50% | 4-6% | 2.3-2.95 kg |
| Grated coconut | 50-60% | 3-5% | 1.9-2.3 kg |
TheBT50 DUO oil press is the ideal choice for the highest quality, maximum yield and professional oil production.
