BRUGGER wood chipper PX170 - PTO shaft
€3,758.00
Free shipping
Available, delivery time: 3-5 Tage
Description
BRUGGER wood chipper PX170 - PTO shaft

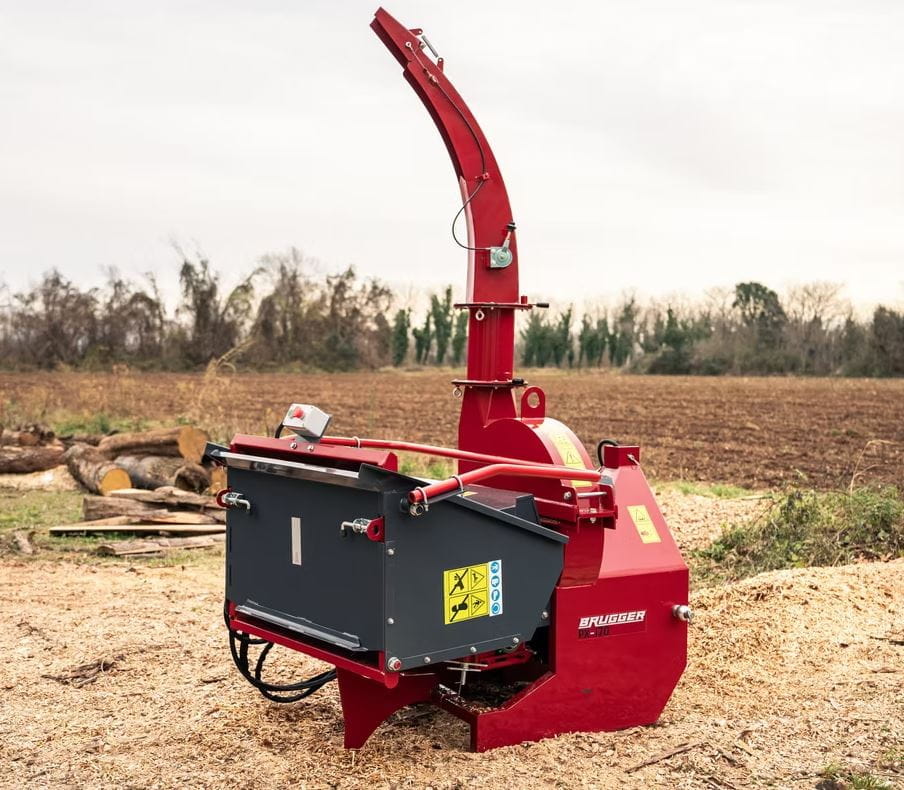

Brugger PX170 - Disc wood chipper with hydraulic feed & own hydraulic system
ThePX170 is a robustPTO wood chipper for agriculture, forestry and municipal use. It processes branches and logs up toØ 170 mm and offers thanks tohydraulic double roller feed an even, controlled material flow. TheIntegrated hydraulic system makes the chopper independent of the tractor hydraulics. The feed hopper can be compactly folded for transport and storage.collapse.
Your advantages at a glance
- Up to 170 mm trunk diameter - Ideal for demanding tree care.
- Hydraulic feed with infinitely variable feed speed.
- Own hydraulic system on the forage harvester - no connection to the tractor necessary.
- PTO 540 rpmrecommended for40-100 HP Tractors.
- Kompatk & mobile: Hinged hopper, solid construction,Weight approx. 570 kg.
Typical areas of application
- Landscape, yard & forest maintenance, fruit growing / viticulture
- Production of wood chips for biomass, mulch & compost
- Loading of trailers/containers directly on site
Technical data
| Drive | PTO shaft540 rpm |
| Tractor power | 40-100 HP |
| Max. trunk diameter | 170 mm |
| Move-in | Hydraulic (double rollers), infinitely variable |
| Hydraulics | integrated System - independent of the tractor hydraulics |
| Weight | approx.570 kg |
| Dimensions (L × W × H) | approx.168 × 110 × 140 cm |
Scope of delivery
- Wood chipperBrugger PX170 (PTO)
- Integrated hydraulic system with tank & pump
- Operating & maintenance instructions
Accessories (optional)
- PTO drive shaft (recommended with overload protection/slip clutch)
- Discharge pipe extension, filling/bag holder systems
Notes & Safety
- Performance/throughput values depend on the type of wood, moisture content, blade condition and feed rate, among other factors.
- Check protective and emergency stop devices before use; wear PPE.
- Maintain tractor power and PTO speed according to specification.
Why the PX170? 17 cm capacity, hydraulic feed with its own hydraulics and compact design - the economical professional solution for fast, clean chopping on the tractor.
Properties
| Cardan shaft slip clutch: | without |
|---|
