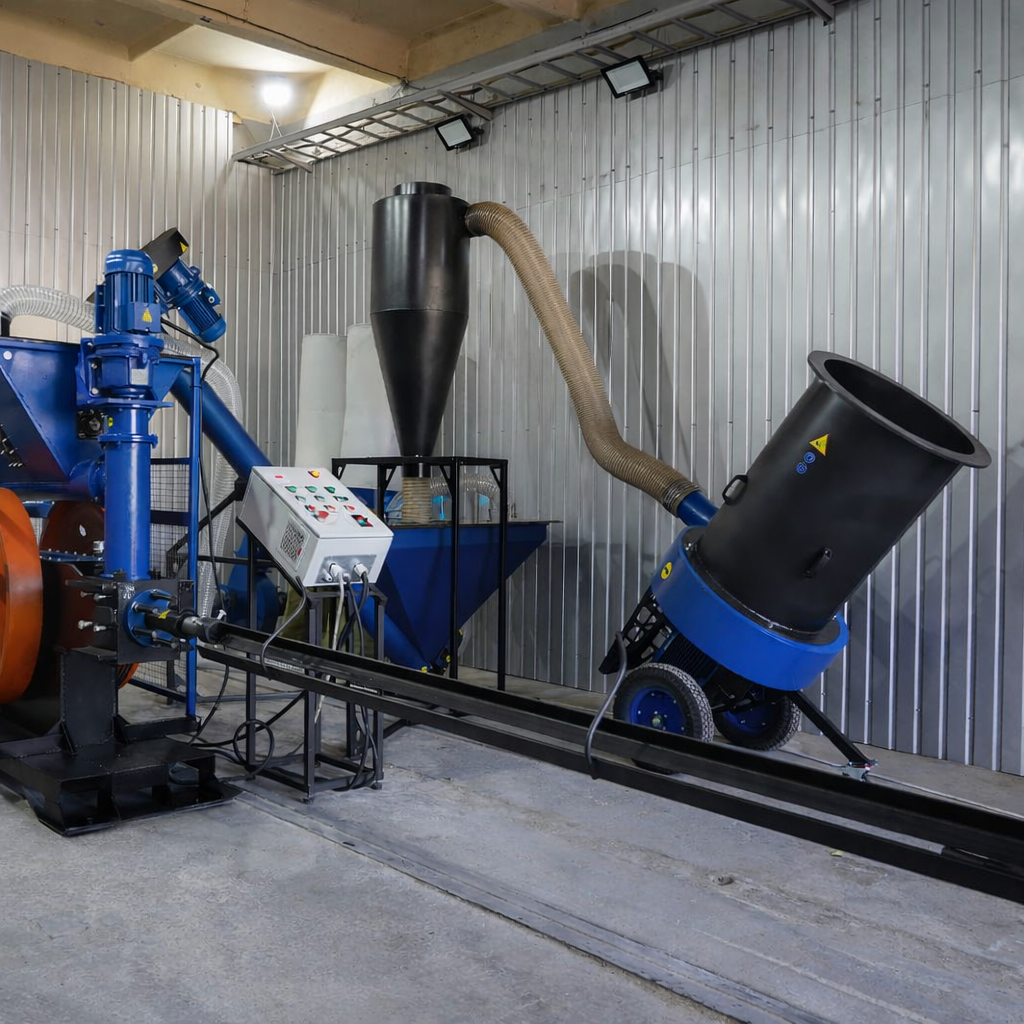

Briquette production line for biomass – up to 350 kg/h, mechanical piston press, 50 mm briquettes

Briquette production line for biomass - efficient & sustainable fuel production

TheseBriquette production line is a comprehensive, industrial equipment set for the ecological and economical production of high-quality fuel briquettes. By using a mechanically piston driven press, wood and agricultural waste is wood and agricultural waste into high-calorific biofuels with a calorific with a calorific value of up to6000 kcal/kg condensed.

Processable raw materials

The production line is suitable for processing a wide range of plant materials:

• Straw
• Grain husking
• Sawdust
• Wood flour
• Other plant biomass

The following conditions must be met for optimum briquetting results:

• Maximum moisture content:12 %
• Maximum grain size of the raw material:25 mm

Binder-free briquetting

High pressure and increased temperatures in the press channel lead to the release ofLignina natural binding agent. This ensures high strength and uniform consistency of the briquettes, without the use of chemical additives.

Components of the production line

• Mechanically operated piston briquette press
• Screw conveyor for material feed
• Frequency inverter for optimised operation
• Cyclone for material separation
• Shredder for preparing the raw material

Key advantages

• High efficiency: up to350 kg/h Production output
• Environmentally friendly: utilisation of biomass and production waste
• Robust construction for continuous operation
• Simple operation without extensive training
• Wide range of materials can be used

Areas of application

• Wood processing companies and sawmills
• Agricultural businesses with biomass production
• Waste-to-energy companies
• Sustainable energy and fuel production

Utilisation of the briquettes produced

• Ovens
• Fireplaces
• Boiler
• Grills

Technical data

• Total output of electric motors:44.5 kW
• production output:250-350 kg/h
• Briquette diameter:50 mm
• Briquette type: solid round cylinder without hole
• Briquette length: variable
• Operating voltage:400 V

Dimensions & weight

• Length:9500 mm
• Width:3500 mm
• Height:2750 mm
• Total weight:2000 kg
