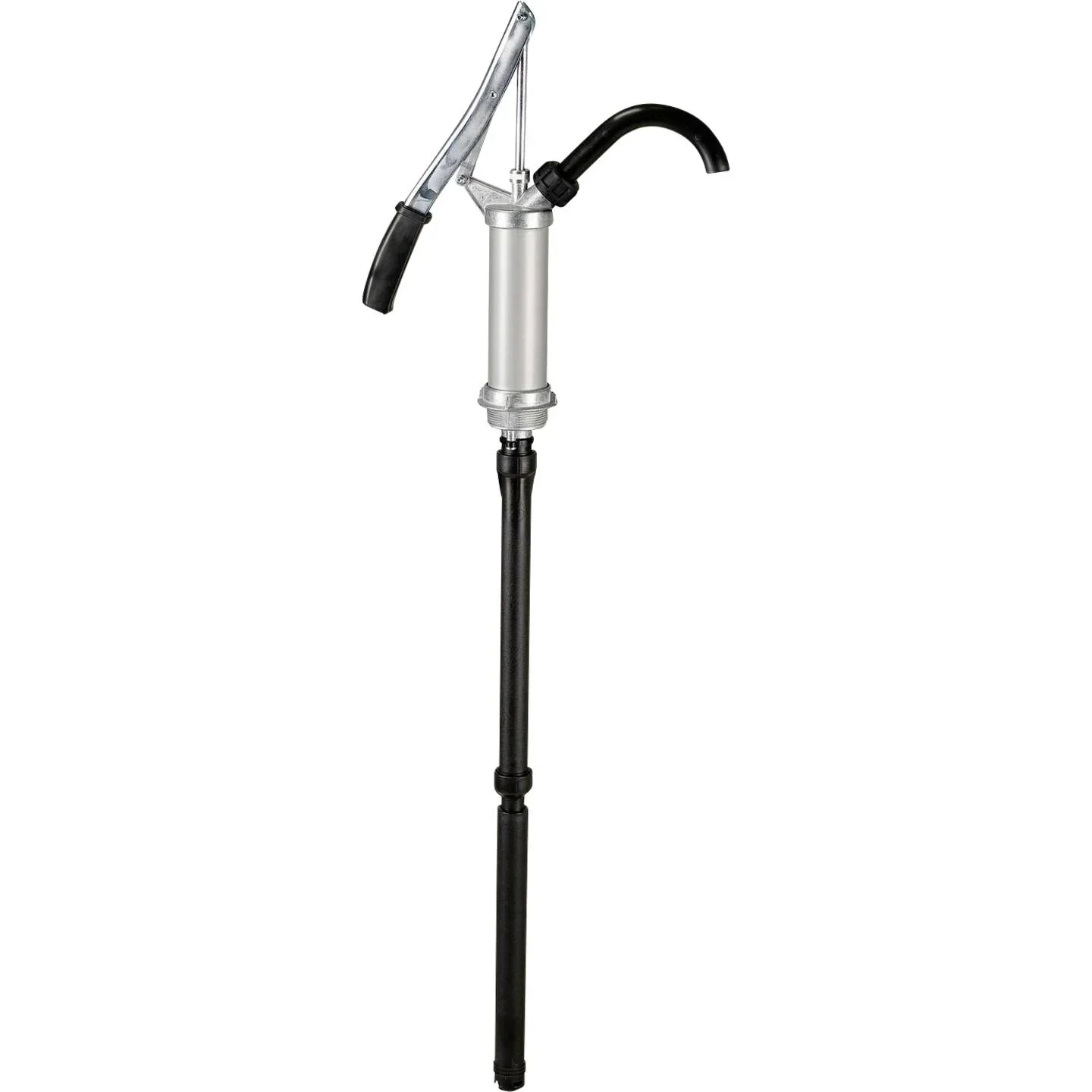

Barrel pump 18 l/min / 480-900mm - 13012
€29.89
Product number:
BL10706
Description
Barrel pump 18 l/min / 480-900mm - 13012
- Delivery rate: 0.3 l/stroke
- Delivery rate at 60 strokes: 18 l/min
- Pumped liquids: Oils up to SAE 90
- Application: Container for 60/200/220 litres
- Outlet: Outlet elbow, fastened with union nut
- Suction pipe length (mm) 355 mm
- Immersion depth (2-part): 355 - 625 mm
- Immersion depth (3-part): 685 - 955 mm
- Barrel screw connection: G 2'' a
- Materials of wetted parts:
- Pump head: impact-resistant die-cast zinc
- Pump body: Aluminium
- Suction pipe: HDPE (high density polyethylene)
- Outlet elbow: PP
- Seals: PVC, NBR, FKM
