Description
Automatic sprinkler system - 32/120
The irrigation hose reel up to 120 metres is the ideal device for irrigating your small diversified horticultural or other business.
Available with a spray width of 32 or 40 metres.
Initially intended for floriculture, it is perfect for watering your small plots or open fields. After unwinding the hose, the sprinkler cart is pulled back to the irrigation machine by the water pressure. This ensures even and controlled irrigation.
Its powerful turbine also works with special water or fertiliser.

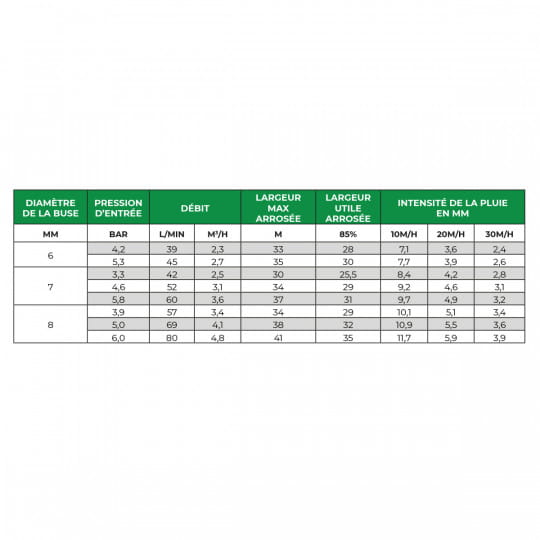

| NOZZLE DIAMETER | INPUT PRESSURE | FLOW RATE |
MAXIMUM WATERED WIDTH | MAXIMUM WATERED EFFECTIVE LENGTH | RAIN INTENSITY IN MM |
|||
| mm | bar | l/min | m3/h | m | 85% | 10m/h | 20m/h | 30m/h |
| 6 | 4,2 | 39 | 2,3 | 33 | 28 | 7,1 | 3,6 | 2,4 |
| 5,3 | 45 | 2,7 | 35 | 30 | 7,7 | 3,9 | 2,6 | |
| 7 | 3,3 | 42 | 2,5 | 30 | 25,5 | 8,4 | 4,2 | 2,8 |
| 4,6 | 52 | 3,1 | 34 | 29 | 9,2 | 4,6 | 3,1 | |
| 5,8 | 60 | 3,6 | 37 | 31 | 9,7 | 4,9 | 3,2 | |
| 8 | 3,9 | 57 | 3,4 | 34 | 29 | 10,1 | 5,1 | 3,4 |
| 5,0 | 69 | 4,1 | 38 | 32 | 10,9 | 5,5 | 3,6 | |
| 6,0 | 80 | 4,8 | 41 | 35 | 11,7 | 5,9 | 3,9 | |
The hose reel has:
- A retraction system with a turbine,
- A by-pass flap to regulate the watering intensity,
- A sprinkler trolley with handle,
- An automatic switch-off when the end position is reached,
- A sprinkler with sector adjustment,
- A sprinkler bowl.
