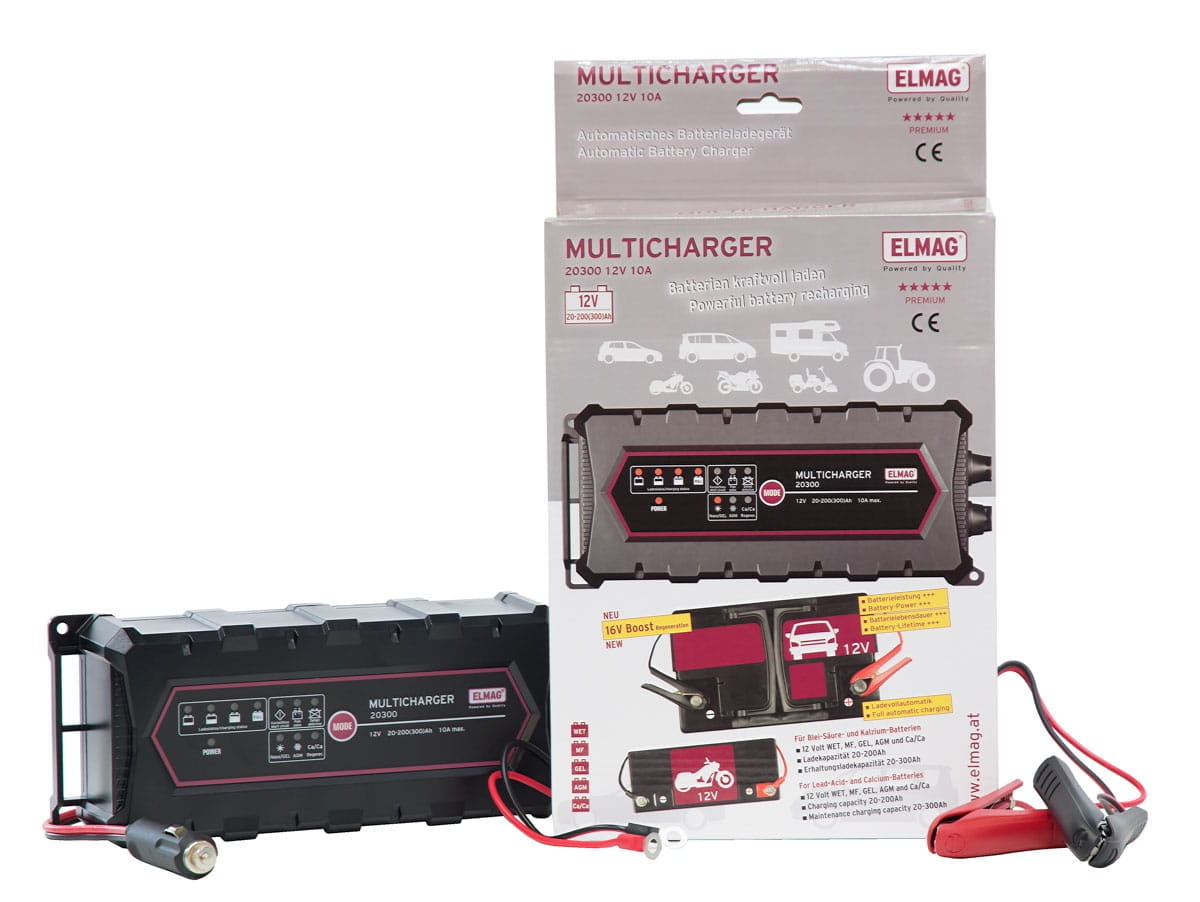

Automatic battery charger 12V / max. 10A
€163.00
Free shipping
Available, delivery time: 2-3 Tage
Description
Automatic battery charger 12V / max. 10A
As Multicharger 14120, but for 12V lead-acid batteries, wet type (WET/PB), MF, GEL, AGM and 12V calcium batteries Ca/Ca
Battery charging capacity20-200Ah (normal charge)20-300Ah (trickle charge)
Charging current max. 10A
3 operating modes - summer mode, winter/AGM mode for charging in cold conditions and Ca/Ca/regeneration mode /16V boost charging)
Can also be used as a 10A power supply unit
Incl. charging cable with pole terminals, battery eyelets Ø 6.4 mm & on-board power supply plug 12VDC
Input voltage: ~220-240VAC 50Hz
Input power: 175W
Final charging voltage: 14.4±0.25VDC
Rechargeable batteries / AGM: 14.7±0.25VDC
Calcium batteries: 16.0±0.25VDC
Minimum voltage 12 V batteries: 14.4/14.7/16.0VDC
Charging current: 10A
Protection class: 65IP
Protection class: II
Battery type: 12 WET/MF/GEL/AGM / Ca/CaV
Battery capacity 12 V normal: 20 - 200Ah
Battery capacity 12 V - trickle charge: 20 - 300Ah
Minimum battery voltage: 4V
Polycarbonate housing: Yes
Min. ambient temperature: -10°C
Max. Ambient temperature: +40°C
Max. range from socket outlet: 3.5m
Mains/connection/charging cable: 1.75/1.25/ 0.5m each
Dimensions: 243x102x57mm
Weight: 0.85kg
Total weight with packaging: 1.19kg
Country of origin: CN
Parcel service capable: Yes
